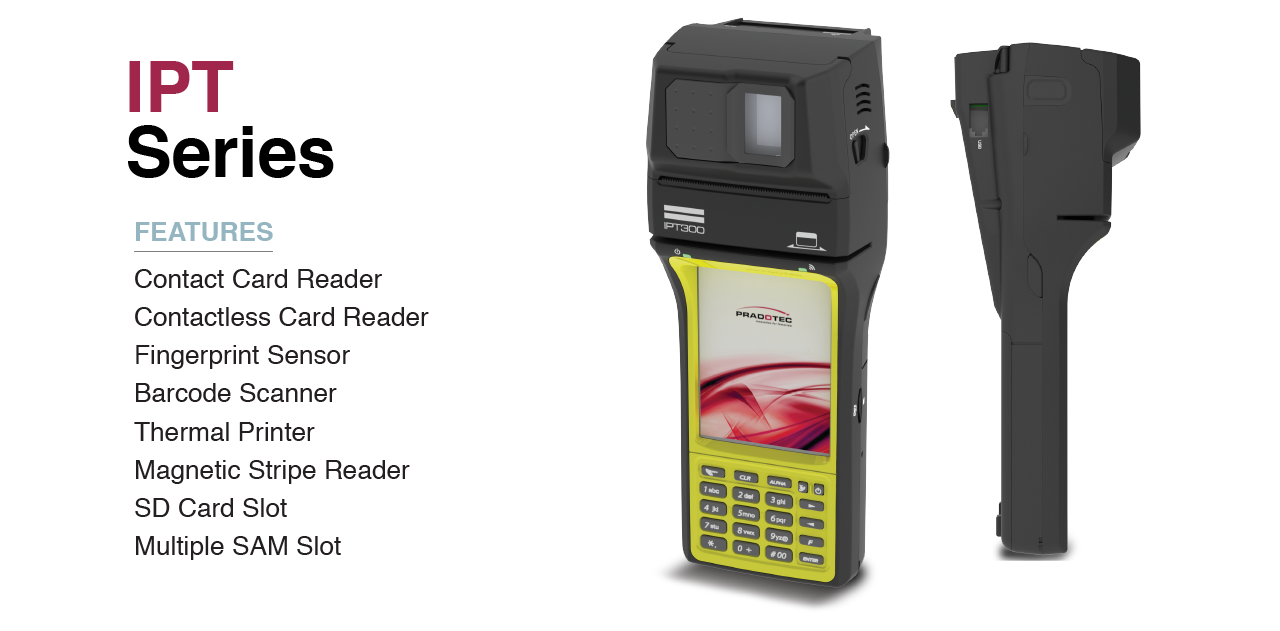

IPT Page-01.png
IPT Page-02.png

Ideal for

IPT Page-03.png


Specification

System

  • Operating System
    Windows CE 6.0

  • Processor
    Telechip 8902 processor

Human Interfaces

  • Display
    3.5” (640x480) Transflective active matrix color TFT (touch screen)

  • Keypad
    21 function button keypad

  • Camera
    Optional

  • Barcode
    Optional

  • GPS
    Ublox NEO-6Q module

Memory

  • RAM
    256MB DDR2

  • Flash
    4GB NAND

  • Expansion Slot
    1 x MicroSD Card (support up to 32GB)

Communication Interface

  • WPAN
    Bluetooth Ver2.1+EDR

  • WLAN
    IEEE 802.11 b/g Standard

  • LAN
    IEEE 802.3 10Base-T/ 100Base-TX compatible

  • WWAN
    HSUPA/HSDPA/UMTS (2100/1900/850MHz)
    GSM/GPRS/EDGE (850/900/1800/1900MHz)

  • USB Host
    USB Host 2.0 (internal use only)

  • USB Client
    USB Client 1.1 (ActiveSync)

  • Serial
    RJ11 USB (for external)

Contactless Card Reader (Optional)

  • PN533 (13.56MHz)
    ISO14443 A/B, Mifare, Felica, ISO/IEC 18092 (NFC)

Contact Card Reader

  • ISO7816-1/2/3/4

Magnetic Stripe Reader

  • Yes

Printer

  • 2 Inch Thermal Printer

Optical Biometric Engine

  • Sensor
    Optical Fingerprint Sensor

  • Module
    SAGEM CBM Biometric Engine

Power

  • Battery Main
    Rechargeable 7.4V Lithium-Polymer 1850mAh

  • Backup (RTC)
    Rechargeable 3V Lithium-ion 100mAh

Environmental

  • Operation Temperature Range
    -10˚C ~ 50˚C

  • Storage
    -20˚C ~ 60˚C

  • Humidity
    5% ~ 90%

Accessories (Subject to Change)

  • AC Adaptor
    AC Input 100-240VAC, 50-60Hz
    9V, 3A AC/DC adaptor with 3-pin plug

  • IO Cable
    ActiveSync Cable

  • Stylus
    Stylus Pen

Mechanical

  • Dimension WxLxH
    89mm x 218mm x 80mm

  • Weight
    630g
